记录一些实用的插件, 如果要指定插件的版本可以使用 plugin@0.3.1。下面的插件在 GitBook 的 3.2.3 版本中可以正常工作,因为一些插件可能不会随着 GitBook 版本的升级而升级,即下面的插件可能不适用高版本的 GitBook,所以这里指定了 GitBook 的版本。另外本文记录的插件在 Linux 下都是可以正确工作的,windows 系统没有测试。这里只是列举了一部分插件,如果有其它的需求,可以到 区搜索相关插件。

Disqus

添加disqus评论

"plugins": [
   "disqus"
],
"pluginsConfig": {
   "disqus": {
       "shortName": "gitbookuse"
   }
}

Search Plus

支持中文搜索, 需要将默认的 search 和 lunr 插件去掉。

{
    "plugins": ["-lunr", "-search", "search-plus"]
}

Prism

{
    "plugins": [
        "prism",
        "-highlight"
    ],
    "pluginsConfig": {
        "prism": {
            "css": [
                "prism-themes/themes/prism-base16-ateliersulphurpool.light.css"
            ]
        }
    }
}

如果需要修改背景色、字体大小等,可以在 website.css 定义 pre[class*="language-"] 类来修改,下面是一个示例:

pre[class*="language-"] {
    border: none;
    background-color: #f7f7f7;
    font-size: 1em;
    line-height: 1.2em;
}

Advanced Emoji

支持emoji表情

"plugins": [
    "advanced-emoji"
]

使用示例:

Github

添加github图标

"plugins": [
    "github"
],
"pluginsConfig": {
    "github": {
        "url": "https://github.com/ainiok"
    }
}

Github Buttons

添加项目在 github 上的 star,watch,fork情况

{
    "plugins": [
        "github-buttons"
    ],
    "pluginsConfig": {
        "github-buttons": {
            "repo": "ainiok/gitbook",
            "types": [
                "star",
                "watch",
                "fork"
            ],
            "size": "small"
        }
    }
}

Ace Plugin

使 GitBook 支持ace 。默认情况下,line-height 为 1,会使代码显得比较挤,而作者好像没提供修改行高的选项,如果需要修改行高,可以到 node_modules -> github-plugin-ace -> assets -> ace.js 中加入下面两行代码 (30 行左右的位置):

editor.container.style.lineHeight = 1.25;
editor.renderer.updateFontSize();

不过上面的做法有个问题就是,每次使用 gitbook install 安装新的插件之后,代码又会重置为原来的样子。另外可以在 website.css 中加入下面的 css 代码来指定 ace 字体的大小

.aceCode {
  font-size: 14px !important;
}

使用插件:

"plugins": [
    "ace"
]

使用示例:


<div data-gb-custom-block data-tag="ace" data-edit='true' data-lang='c_cpp'>

// This is a hello world program for C.
#include <stdio.h>

int main(){
  printf("Hello World!");
  return 1;
}

</div>

Emphasize

为文字加上底色

"plugins": [
    "emphasize"
]

使用示例:

This text is

<div data-gb-custom-block data-tag="em">highlighted !</div>

This text is

<div data-gb-custom-block data-tag="em">highlighted with **markdown**!</div>

This text is

<div data-gb-custom-block data-tag="em" data-type='green'>highlighted in green!</div>

This text is

<div data-gb-custom-block data-tag="em" data-type='red'>highlighted in red!</div>

This text is

<div data-gb-custom-block data-tag="em" data-color='#ff0000'>highlighted with a custom color!</div>

KaTex

为了支持数学公式, 我们可以使用KaTex和MathJax插件, 官网上说Katex速度要快于MathJax

"plugins": [
    "katex"
]

使用示例:

When

<div data-gb-custom-block data-tag="math">a \ne 0</div>, there are two solutions to <div data-gb-custom-block data-tag="math">(ax^2 + bx + c = 0)</div> and they are <div data-gb-custom-block data-tag="math">x = {-b \pm \sqrt{b^2-4ac} \over 2a}.</div>

$$
\int_{-\infty}^\infty g(x) dx
$$

$$
1 \over 3
$$

Include Codeblock

使用代码块的格式显示所包含文件的内容. 该文件必须存在。插件提供了一些配置,可以区插件官网查看。如果同时使用 ace 和本插件,本插件要在 ace 插件前面加载。

{
    "plugins": [
        "include-codeblock"
    ],
    "pluginsConfig": {
        "include-codeblock": {
            "template": "ace",
            "unindent": "true",
            "theme": "monokai"
        }
    }
}

使用示例:

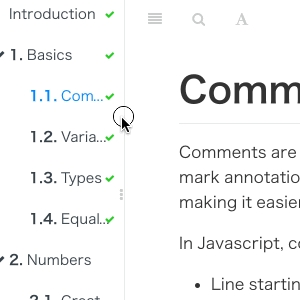

Splitter

使侧边栏的宽度可以自由调节

"plugins": [
    "splitter"
]

Mermaid-gb3

"plugins": [
    "mermaid-gb3"
]

使用示例:

graph TD;
  A-->B;
  A-->C;
  B-->D;
  C-->D;

Puml

使用 PlantUML 展示 uml 图。

{
    "plugins": ["puml"]
}

使用示例:


<div data-gb-custom-block data-tag="plantuml">

Class Stage
    Class Timeout {
        +constructor:function(cfg)
        +timeout:function(ctx)
        +overdue:function(ctx)
        +stage: Stage
    }
    Stage <|-- Timeout

</div>

效果如下所示:


<div data-gb-custom-block data-tag="plantuml">

Class Stage
    Class Timeout {
        +constructor:function(cfg)
        +timeout:function(ctx)
        +overdue:function(ctx)
        +stage: Stage
    }
    Stage <|-- Timeout

</div>

Graph

使用 function-plot 绘制数学函数图。

{
    "plugins": [ "graph" ],
}

下面是一个示例,需要注意的是 `

` 块中的内容必须是合法的 JSON 格式。


<div data-gb-custom-block data-tag="graph">

{
    "title": "1/x * cos(1/x)",
    "grid": true,
    "xAxis": {
        "domain": [0.01, 1]
    },
    "yAxis": {
        "domain": [-100, 100]
    },
    "data": [{
        "fn": "1/x * cos(1/x)",
        "closed": true
    }]
}

</div>

效果如下所示:


<div data-gb-custom-block data-tag="graph">

{
    "title": "1/x * cos(1/x)",
    "grid": true,
    "xAxis": {
        "domain": [0.01, 1]
    },
    "yAxis": {
        "domain": [-100, 100]
    },
    "data": [{
        "fn": "1/x * cos(1/x)",
        "closed": true
    }]
}

</div>

Chart

使用 C3.js 或者 Highcharts 绘制图形。

{
    "plugins": [ "chart" ],
    "pluginsConfig": {
        "chart": {
            "type": "c3"
        }
    }
}

type 可以是 c3 或者 highcharts, 默认是 c3.

下面是一个示例:


<div data-gb-custom-block data-tag="chart">

{
    "data": {
        "type": "bar",
        "columns": [
            ["data1", 30, 200, 100, 400, 150, 250],
            ["data2", 50, 20, 10, 40, 15, 25]
        ],
        "axes": {
            "data2": "y2"
        }
    },
    "axis": {
        "y2": {
            "show": true
        }
    }
}

</div>

效果如下所示:


<div data-gb-custom-block data-tag="chart">

{
    "data": {
        "type": "bar",
        "columns": [
            ["data1", 30, 200, 100, 400, 150, 250],
            ["data2", 50, 20, 10, 40, 15, 25]
        ],
        "axes": {
            "data2": "y2"
        }
    },
    "axis": {
        "y2": {
            "show": true
        }
    }
}

</div>

Sharing-plus

分享当前页面,比默认的 sharing 插件多了一些分享方式。

 plugins: ["-sharing", "sharing-plus"]

配置:

"pluginsConfig": {
    "sharing": {
       "douban": false,
       "facebook": false,
       "google": true,
       "hatenaBookmark": false,
       "instapaper": false,
       "line": true,
       "linkedin": true,
       "messenger": false,
       "pocket": false,
       "qq": false,
       "qzone": true,
       "stumbleupon": false,
       "twitter": false,
       "viber": false,
       "vk": false,
       "weibo": true,
       "whatsapp": false,
       "all": [
           "facebook", "google", "twitter",
           "weibo", "instapaper", "linkedin",
           "pocket", "stumbleupon"
       ]
   }
}

Tbfed-pagefooter

为页面添加页脚

"plugins": [
   "tbfed-pagefooter"
],
"pluginsConfig": {
    "tbfed-pagefooter": {
        "copyright":"Copyright &copy ainiok.com 2018",
        "modify_label": "该文件修订时间:",
        "modify_format": "YYYY-MM-DD HH:mm:ss"
    }
}

Expandable-chapters-small

使左侧的章节目录可以折叠

plugins: ["expandable-chapters-small"]

Sectionx

{
    "plugins": [
       "sectionx"
   ],
    "pluginsConfig": {
        "sectionx": {
          "tag": "b"
        }
      }
}

使用示例

<!--sec data-title="Sectionx Demo" data-id="section0" data-show=true ces-->

Insert markdown content here (you should start with h3 if you use heading).

<!--endsec-->

GA

"plugins": [
    "ga"
 ],
"pluginsConfig": {
    "ga": {
        "token": "UA-XXXX-Y"
    }
}

3-ba

{
    "plugins": ["3-ba"],
    "pluginsConfig": {
        "3-ba": {
            "token": "xxxxxxxx"
        }
    }
}

Donate

"plugins": [
    "donate"
],
"pluginsConfig": {
    "donate": {
        "wechat": "https://book.ainiok.com/resource/weixin.png",
        "alipay": "https://book.ainiok.com/resource/alipay.png",
        "title": "",
        "button": "赏",
        "alipayText": "支付宝打赏",
        "wechatText": "微信打赏"
    }
}

Local Video

"plugins": [ "local-video" ]

使用示例:为了使视频可以自适应,我们指定视频的width为100%,并设置宽高比为16:9,如下面所示

<video id="my-video" class="video-js" controls preload="auto" width="100%"
poster="https://book.ainiok.com/resource/poster.jpg" data-setup='{"aspectRatio":"16:9"}'>
  <source src="https://book.ainiok.com/resource/demo.mp4" type='video/mp4' >
  <p class="vjs-no-js">
    To view this video please enable JavaScript, and consider upgrading to a web browser that
    <a href="http://videojs.com/html5-video-support/" target="_blank">supports HTML5 video</a>
  </p>
</video>

另外我们还要再配置下css,即在website.css中加入

.video-js {
    width:100%;
    height: 100%;
}

<br />
<video id="my-video" class="video-js" controls preload="auto" width="100%" poster="https://book.ainiok.com/resource/poster.jpg" data-setup='{"aspectRatio":"16:9"}'>
  <source src="http://book.ainiok.com/resource/demo.mp4" type='video/mp4' >
  <p class="vjs-no-js">
    To view this video please enable JavaScript, and consider upgrading to a web browser that
    <a href="https://videojs.com/html5-video-support/" target="_blank">supports HTML5 video</a>
  </p>
</video>

Simple-page-toc

{
    "plugins" : [
        "simple-page-toc"
    ],
    "pluginsConfig": {
        "simple-page-toc": {
            "maxDepth": 3,
            "skipFirstH1": true
        }
    }
}

使用方法: 在需要生成目录的地方加上 <!-- toc -->

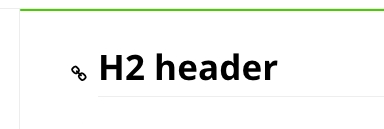

Anchors

添加 Github 风格的锚点样式

"plugins" : [ "anchors" ]

Anchor-navigation-ex

添加Toc到侧边悬浮导航以及回到顶部按钮。需要注意以下两点:

  • 本插件只会提取 h[1-3] 标签作为悬浮导航

  • 只有按照以下顺序嵌套才会被提取

# h1
## h2
### h3
必须要以 h1 开始,直接写 h2 不会被提取
## h2
{
    "plugins": [
        "anchor-navigation-ex"
    ],
    "pluginsConfig": {
        "anchor-navigation-ex": {
            "isRewritePageTitle": true,
            "isShowTocTitleIcon": true,
            "tocLevel1Icon": "fa fa-hand-o-right",
            "tocLevel2Icon": "fa fa-hand-o-right",
            "tocLevel3Icon": "fa fa-hand-o-right"
        }
    }
}

Edit Link

"plugins": ["edit-link"],
"pluginsConfig": {
    "edit-link": {
        "base": "https://github.com/USER/REPO/edit/BRANCH",
        "label": "Edit This Page"
    }
}

Sitemap-general

{
    "plugins": ["sitemap-general"],
    "pluginsConfig": {
        "sitemap-general": {
            "prefix": "http://book.ainiok.com"
        }
    }
}

Favicon

{
    "plugins": [
        "favicon"
    ],
    "pluginsConfig": {
        "favicon": {
            "shortcut": "assets/images/favicon.ico",
            "bookmark": "assets/images/favicon.ico",
            "appleTouch": "assets/images/apple-touch-icon.png",
            "appleTouchMore": {
                "120x120": "assets/images/apple-touch-icon-120x120.png",
                "180x180": "assets/images/apple-touch-icon-180x180.png"
            }
        }
    }
}

Todo

添加 Todo 功能。默认的 checkbox 会向右偏移 2em,如果不希望偏移,可以在 website.css 里加上下面的代码:

input[type=checkbox]{
    margin-left: -2em;
}
"plugins": ["todo"]

使用示例:

Terminal

模拟终端显示,主要用于显示命令以及多行输出,不过写起来有些麻烦。

{
    "plugins": [
        "terminal"
    ],
    "pluginsConfig": {
        "terminal": {
            "copyButtons": true,
            "fade": false,
            "style": "flat"
        }
    }
}

现在支持 6 种标签:

  • command: Command "executed" in the terminal.

  • delimiter: Sequence of characters between the prompt and the command.

  • error: Error message.

  • path: Directory path shown in the prompt.

  • prompt: Prompt of the user.

  • warning: Warning message.

标签的使用格式如下所示:

**[<tag_name> 内容]

为了使标签正常工作,需要在代码块的第一行加入 **[termial] 标记,下面是一个完整的示例:

```
**[terminal]
**[prompt foo@joe]**[path ~]**[delimiter  $ ]**[command ./myscript]
Normal output line. Nothing special here...
But...
You can add some colors. What about a warning message?
**[warning [WARNING] The color depends on the theme. Could look normal too]
What about an error message?
**[error [ERROR] This is not the error you are looking for]
```

效果如下所示:

**[terminal]
**[prompt foo@joe]**[path ~]**[delimiter  $ ]**[command ./myscript]
Normal output line. Nothing special here...
But...
You can add some colors. What about a warning message?
**[warning [WARNING] The color depends on the theme. Could look normal too]
What about an error message?
**[error [ERROR] This is not the error you are looking for]

terminal 支持下面 5 种样式,如果需要更换样式,在 pluginsConfig 里配置即可。

  • black: Just that good old black terminal everybody loves.

  • classic: Looking for green color font over a black background? This is for you.

  • flat: Oh, flat colors. I love flat colors. Everything looks modern with them.

  • ubuntu: Admit it or not, but Ubuntu have a good looking terminal.

  • white: Make your terminal to blend in with your GitBook.

Copy-code-button

为代码块添加复制的按钮。

{
    "plugins": ["copy-code-button"]
}

效果如下图所示:

Alerts

添加不同 alerts 样式的 blockquotes,目前包含 info, warning, danger 和 success 四种样式。

{
    "plugins": ["alerts"]
}

下面是使用示例:

Info styling
> **[info] For info**
>
> Use this for infomation messages.

Warning styling
> **[warning] For warning**
>
> Use this for warning messages.

Danger styling
> **[danger] For danger**
>
> Use this for danger messages.

Success styling
> **[success] For info**
>
> Use this for success messages.

效果如下所示:

Info styling

[info] For info

Use this for infomation messages.

Warning styling

[warning] For warning

Use this for warning messages.

Danger styling

[danger] For danger

Use this for danger messages.

Success styling

[success] For info

Use this for success messages.

Include-csv

展示 csv 文件。

{
    "plugins": ["include-csv"]
}

使用示例:


<div data-gb-custom-block data-tag="includeCsv" data-src='./assets/csv/test.csv' data-useHeader='true'> </div>

效果如下所示:


<div data-gb-custom-block data-tag="includeCsv" data-src='./assets/csv/test.csv' data-useHeader='true'> </div>

Musicxml

支持 musicxml 格式的乐谱渲染。

{
    "plugins": ["musicxml"]
}

下面是一个示例,需要注意的是 block 中的内容必须是一个合法的 musicxml 文件路径,并且不能有换行和空格。


<div data-gb-custom-block data-tag="musicxml">assets/musicxml/mandoline - debussy.xml</div>

效果如下所示


<div data-gb-custom-block data-tag="musicxml">assets/musicxml/mandoline - debussy.xml</div>

Klipse

集成 Klipse (online code evaluator)

{
    "plugins": ["klipse"]
}

klipse 目前支持下面的语言:

  • javascript: evaluation is done with the javascript function eval and pretty printing of the result is done with pretty-format

  • clojure[script]: evaluation is done with Self-Hosted Clojurescript

  • ruby: evaluation is done with Opal

  • C++: evaluation is done with JSCPP

  • python: evaluation is done with Skulpt

  • scheme: evaluation is done with BiwasScheme

  • PHP: evaluation is done with Uniter

  • BrainFuck

  • JSX

  • EcmaScript2017

  • Google Charts: See Interactive Business Report with Google Charts.

下面是一个使用示例:

```eval-python
print [x + 1 for x in range(10)]
```

效果如下所示:

print [x + 1 for x in range(10)]

Versions-select

添加版本选择的下拉菜单,针对文档有多个版本的情况。

{
    "plugins": [ "versions-select" ],
    "pluginsConfig": {
        "versions": {
            "options": [
                {
                    "value": "http://book.ainiok.com",
                    "text": "v3.2.2"
                },
                {
                    "value": "http://book.ainiok.com/v2/",
                    "text": "v2.6.4"
                }
            ]
        }
    }
}

我们可以自定义 css 来修改 select 的显示样式:

.versions-select select {
    height: 2em;
    line-height: 2em;
    border-radius: 4px;
    background: #efefef;
}

效果见左上角。

RSS

添加 rss 订阅功能。

{
    "plugins": [ "rss" ],
    "pluginsConfig": {
        "rss": {
            "title": "GitBook 使用教程",
            "description": "记录 GitBook 的配置和一些插件的使用",
            "author": "ainiok",
            "feed_url": "http://book.ainiok.com/rss",
            "site_url": "http://book.ainiok.com/",
            "managingEditor": "job@ainiok.com",
            "webMaster": "job@ainiok.com",
            "categories": [
                "gitbook"
            ]
        }
    }
}

效果见右上角。

使用 Prism.js 为语法添加高亮显示,需要将 highlight 插件去掉。该插件自带的主题样式较少,可以再安装 prism-themes 插件,里面多提供了几种样式,具体的样式可以参考 ,在设置样式时要注意设置 css 文件名,而不是样式名。

:bowtie:

支持渲染图表

将页面分块显示,标签的 tag 最好是使用 b 标签,如果使用 h1-h6 可能会和其他插件冲突。

Google 统计

百度统计

打赏插件

使用Video.js 播放本地视频

自动生成本页的目录结构。另外 GitBook 在处理重复的标题时有些问题,所以尽量不适用重复的标题。

如果将 GitBook 的源文件保存到github或者其他的仓库上,使用该插件可以链接到当前页的源文件上。

生成sitemap

更改网站的 favicon.ico

😄
😆
😊
😃
☺️
插件官网
Disqus - Disqus 评论
Search Plus - 支持中文搜索
Prsim - 使用 Prism.js 高亮代码
Advanced Emoji - 支持 emoji 表情
Github - 添加github图标
Github Buttons - 添加项目在 Github 上的 star、fork、watch 信息
Ace Plugin - 支持ace
Emphasize - 为文字加上底色
KaTex - 支持数学公式
Include Codeblock - 用代码块显示包含文件的内容
Splitter - 使侧边栏的宽度可以自由调节
Mermaid-gb3 - 支持渲染 Mermaid 图表
Puml - 支持渲染 uml 图
Graph - 使用 function-plot 绘制数学函数图
Chart - 绘制图形
Sharing-plus - 分享当前页面
Tbfed-pagefooter - 为页面添加页脚
Expandable-chapters-small - 使左侧的章节目录可以折叠
Sectionx - 将页面分块显示
GA - Google 统计
3-ba - 百度统计
Donate - 打赏插件
Local Video - 使用 Video.js 播放本地视频
Simple-page-toc - 自动生成本页的目录结构
Anchors - 添加 Github 风格的锚点
Anchor-navigation-ex - 添加Toc到侧边悬浮导航以及回到顶部按钮
Edit Link - 链接到当前页源文件上
Sitemap-general - 生成sitemap
Favicon - 更改网站的 favicon.ico
Todo - 添加 Todo 功能
Terminal - 模拟终端样式
Copy-code-button - 为代码块添加复制按钮
Alerts - 添加不同 alerts 样式的 blockquotes
Include-csv - 显示 csv 文件内容
Musicxml - 支持 musicxml 格式的乐谱渲染
Klipse - 集成 Kplise (online code evaluator)
Versions-select - 添加版本选择的下拉菜单
Rss - 添加 rss 订阅功能
插件地址
插件地址
这里
Prism 插件地址
prism-themes 插件地址
emoij表情列表
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
MathJax使用LaTeX语法编写数学公式教程
插件地址
import
插件地址
Mermaid
插件地址
插件地址
PlantUML 地址
插件地址
function-plot
插件地址
C3.js
highcharts
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
插件地址
musicXML
插件地址
Klipse
插件地址
插件地址
